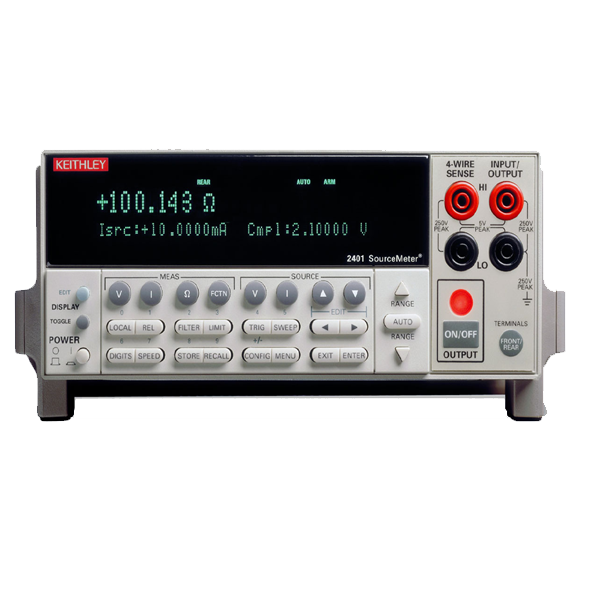

Keithley 2400 Series SMU Standard
$1.00
Keithley's Series 2400 Source Measure Unit (SMU) Instruments are designed specifically for test applications that demand tightly coupled sourcing and measurement. All Source Meter models provide precision voltage and current sourcing as well as measurement capabilities. Each Source Meter SMU instrument is both a highly stable DC power source and a true instrument-grade 6½-digit multimeter. The power source characteristics include low noise, precision, and readback. The multimeter capabilities include high repeatability and low noise. The result is a compact, single-channel, DC parametric tester. In operation, these instruments can act as a voltage source, a current source, a voltage meter, a current meter, and an ohmmeter. Manufacturers of components and modules for communications, semiconductors, computers, automotive,
Key features
Five instruments in one (IV Source, IVR Measure)
Five models: 20-100W DC, 1000W pulsed, 1100V to 1µV
Source and sink (4-quadrant) operation
0.012% basic measure accuracy with 6½-digit resolution
2-, 4-, and 6-wire remote V-source and measure sensing
1700 readings/second at 4½ digits via GPIB
Pass/Fail comparator for fast sorting/binning
Programmable DIO port for automation/handler/prober control (except 2401)
Standard SCPI GPIB, RS-232 and Keithley Trigger Link interfaces
Download Kick Start today and try it out for 60 days
Advantages of a Tightly Integrated Instrument
By linking source and measurement circuitry in a single unit, these instruments offer a variety of advantages over systems configured with separate source and measurement instruments. For example, they minimize the time required for test station development, setup, and maintenance, while lowering the overall cost of system ownership. They simplify the test process itself by eliminating many of the complex synchronization and connection issues associated with using multiple instruments. And, their compact half-rack size conserves precious “real estate” in the test rack or bench.
