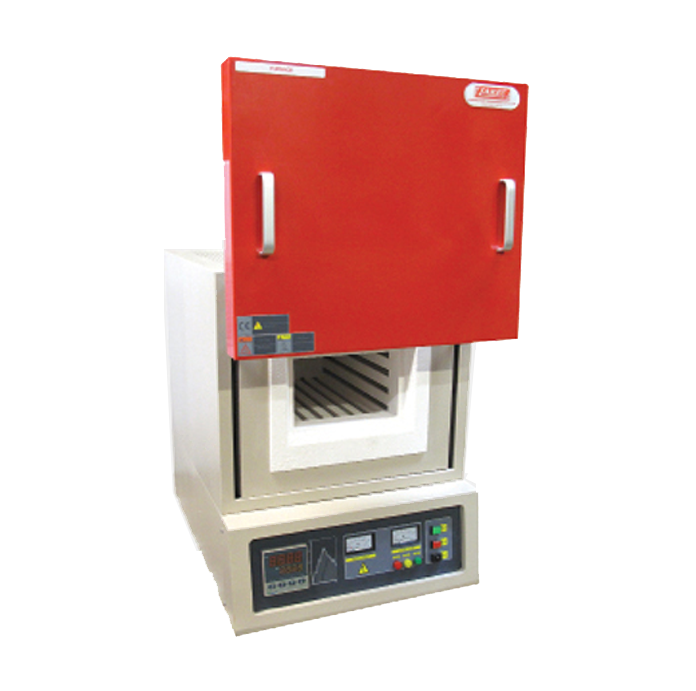

HORIZONTAL BOX FURNACE – SAFETY DOOR (UP TO +1200ºC)

Labec Horizontal Box Furnaces double skinned fan cooled construction keeps the exterior body cool at high temperatures providing excellent stability. The furnace features light weight ceramic fibre insulation for rapid thermal cycling and heating by electric elements with a top vent port for natural venting or gas purging. The safety door models door is firmly held closed with self tensioning struts and lifts open with a slight pull. The lift up feature keeps the door hot face away from operator when open and has a safety cut off when the door is opened during operation. Additional options are available.

• Capacity (L): 4 | 7 | 15

• Temp. Controller: Digital PID Controller

• Temp. Min: +300°C

• Temp. Max: +1200°C

• Temp. Setting Accuracy: 1°C

• Temp. Fluctuation: ±1°C

• Temp. Sensor: Type K

• Heating System: Electric Exposed Internal Element

• Weight (kg): 38 | 45 | 53
