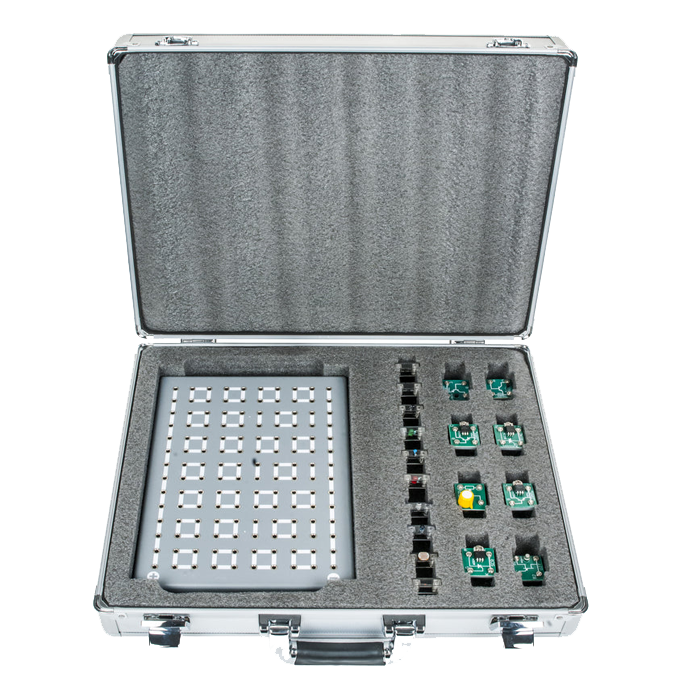

Electronics System 1 Physics Kit

The Electronics System 1 Physics Kit comes with 18 components, including a Circuit Board, and all the Diodes and transistors one needs to investigate core concepts in introductory semiconductor electronics.

With this kit students can explore common experiments such as The Half-Wave Rectifier, Measuring Gain with a Power Transistor, The Infrared Diode and Phototransistor, and The Unijunction Transistor.

Includes an Experiment Guide covering 12 activities:

• The Forward Bias Diode

• The Half-Wave Rectifier

• The Zener Diode

• The Transistor as a Switch

• Measuring Gain with a PNP Power Transistor

• The Infrared Diode and Phototransistor

• The Light Dependent Resistor

• Temperature Dependent Resistors

• The Silicon Controlled Rectifier

• The TRIAC

• The Unijunction Transistor
